Online Conductivity Meter Module ZW-HC101
Summary:
ZW-HC101 online conductivity meter is an electrochemical conductivity detection module. By applying periodic voltage changes at both ends of the electrode, the current of the measuring electrode changes periodically. According to Ohm's law, the impedance of the measured solution can be calculated, so as to measure the conductivity of the solution.
Feature:
* It is convenient to connect to third-party equipment such as PLC, DCS, industrial control computer, general controller, paperless recording instrument or touch screen.

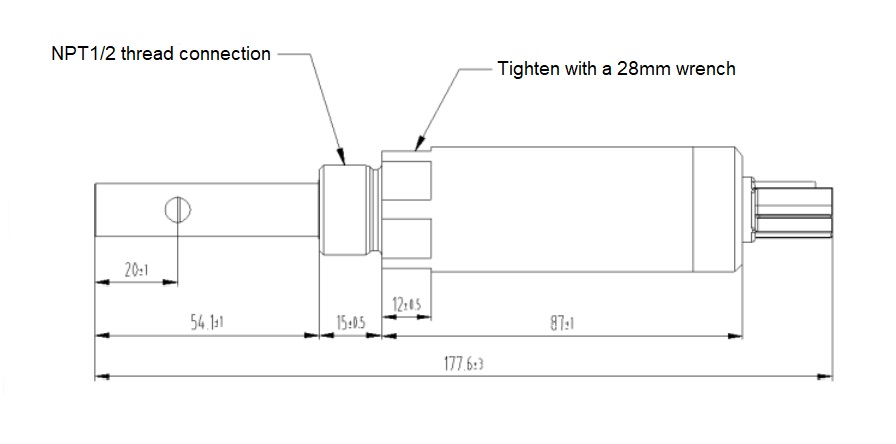

* Adopt 1/2NPT pipe thread
* IP67 protection level.
* Analog output, compatible with CAN communication.
Share To:
APPLICATION
Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry
PARAMETER
Technical Data Sheet
| Model | ZW-HC101 |
| Range | 0.01～20 uS/cm |
| Resolution | 0.01 |
| Accuracy | ±1.5% F.S. |
| Working temperature | -40～90℃ |
| Working pressure | <0.6 MPa |
| Power supply | 12～36 VDC |
| Signal output Analog voltage | 0.8V—4V |
| Wetted material | SUS316L/PVDF/POM |
| Mounting method | 1/2 NPT pipe thread |
| Calibration method | Single point calibration |
| Power consumption | 0.1W~0.5W |
| Protection class | IP67 |
| Calibration method | CAN communication |
