Pressure Sensor WPCH02

  • WPCH02.png


WPCH02 universal ceramic pressure transmitter is a small size, light weight, and compact pressure transmitter. It's very easy to install and use, and it's an affordable product. Self-manufactured pressure core, through reliable amplification circuit and precise temperature compensation, converts the pressure of the measured medium into a standard voltage signal output. Integrated all-stainless-steel structure and high-strength plastic components improve the overall anti-corrosion performance. Can meet pressure measurement and control demands in a variety of environmental conditions. Can be widely used in water pump, intelligent water supply, air compressor, automobile, air conditioner, water treatment, pneumatic hydraulic control, etc.


* High sensitivity, low power consumption
* Excellent stability
* Temperature Compensated, Excellent Linear Output
* Provide serial port (UART), PWM waveform and other output methods
* Long lifespan
* Anti-water vapor interference, no poisoning.

Share To:


Pipeline Pressure Monitoring

The combustion gas used in the city is supplied to urban residents from the gas source point through the gas distribution and supply system. The main component of the gas distribution system is the gas pipeline. Compared with other pipelines, the tightness of gas pipelines has particularly strict requirements,


Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

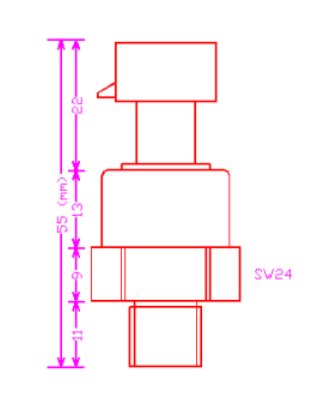

Specification Product Size

Technical Data Sheet

Model No. WPCH02
Detection Range 0-0.2MPa-……-40MPa Optional
Overall accuracy 0.5%FS、1.0%FS(default)、2.0%FS
Output signal 4-20mA、0-5V、0.5-4.5V Can be customized
Supply voltage +5VDC、+12VDC、+24VDC Can be customized
Process connection G1/4、G1/2、G1/8、M20*1.5、M14*1.5 etc . Can be customized
Electrical connection Three-pin plug Can be customized
Compensation temperature 0-65°C(default) Can be customized
Operating temperature -20-125°C
Safe overload   150-200%
Ultimate overload 200-250%
Long-term stability 1%FS/year
Response time Less than1ms
Shell material 304 stainless steel   Can be customized
Protection class IP65
