Pressure Sensor WPCH13

  • WPCH13.png


WPCH13 universal ceramic pressure transmitter is a compact pressure transmitter with small size, light weight, convenient installation and use, and high cost performance. Using a self-made pressure core, through a highly reliable amplifier circuit and precise temperature compensation, the pressure of the measured medium is converted into a standard voltage signal output. Sophisticated all-stainless steel structure and high-strength plastic components improve the overall anti-corrosion performance. It can meet the pressure measurement and control needs under various environmental conditions.


WPCH13 universal ceramic pressure transmitter has various output forms and pressure interfaces, and can be customized according to customer requirements.

Share To:


Pipeline Pressure Monitoring

The combustion gas used in the city is supplied to urban residents from the gas source point through the gas distribution and supply system. The main component of the gas distribution system is the gas pipeline. Compared with other pipelines, the tightness of gas pipelines has particularly strict requirements,


Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

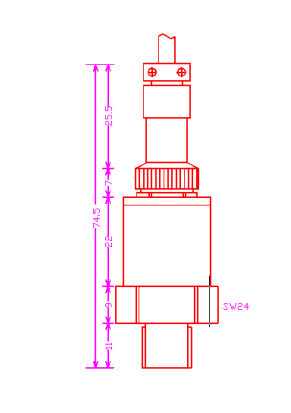

Specification Product Size

Technical Data Sheet

Model No. WPCH13
Range 0-0.2MPa-...-40MPa optional
Comprehensive accuracy 0.5%FS、1.0%FS(default)、2.0%FS
Output signal 4-20mA (customizable)
Supply voltage +24VDC (customizable)
Process connection G1/4, G1/2, G1/8, M20*1.5, M14*1.5, etc.(customizable)
Electrical connections Aviation plug
Compensated temperature 0-65°C(default)(customizable)
Operating temperature -20-125°C
Safe overload 150-200%
Limit overload 200-250%
Long term stability 1%FS/year
Response time <1ms
Shell material 304 stainless steel(customizable)
Degree of protection IP65
