Pressure Sensor WPDK06


+
  • Pressure-Sensor-WPDK06.png

Summary:

WPDK06 universal ceramic pressure transmitter is a small size, light weight, and compact pressure transmitter. It's very easy to install and use, and it's an affordable product. Self-manufactured pressure core, through reliable amplification circuit and precise temperature compensation, converts the pressure of the measured medium into a standard voltage signal output. Integrated all-stainless-steel structure and high-strength plastic components improve the overall anti-corrosion performance. Can meet pressure measurement and control demands in a variety of environmental conditions. Can be widely used in water pump, intelligent water supply, air compressor, automobile, air conditioner, water treatment, pneumatic hydraulic control, etc.

Feature:

* High sensitivity, low power consumption
* Excellent stability
* Temperature Compensated, Excellent Linear Output
* Provide serial port (UART), PWM waveform and other output methods
* Long lifespan
* Anti-water vapor interference, no poisoning.

Share To:


APPLICATION

Pipeline Pressure Monitoring

The combustion gas used in the city is supplied to urban residents from the gas source point through the gas distribution and supply system. The main component of the gas distribution system is the gas pipeline. Compared with other pipelines, the tightness of gas pipelines has particularly strict requirements,

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

PARAMETER

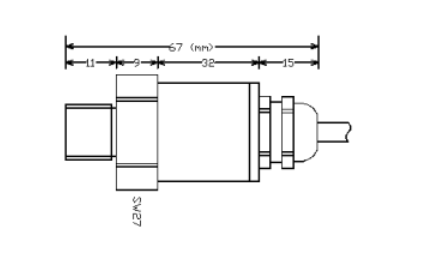

Specification Product Size

Technical Data Sheet



Model No. WPDK06
Detection Range 1.6MPa
Overall Accuracy ±2%FS@25°C
Output signal 4-20mA
Supply voltage 18-28VDC
Process connection M20*1.5
Electrical connection Water-proof plug 5M Cable
Compensation temperature -10-60°C
Ambient temperature -40-85°C
Safe overload 200%
Ultimate overload 250%
Long-term stability ≤±2%FS /year
Shell material  304 stainless steel
Protection class  IP65
Cable PVV ordinary cable PVV3*0.3
