Pressure Sensor WPSK51

Summary:

WPSK51 plastic packaged pressure sensor consists of a silicon differential pressure sensor and a plastic housing. The silicon differential pressure sensor is a circuit module composed of a silicon differential pressure sensor chip and an ASIC, is packaged on an 11*11mm Al₂O₃ ceramic substrate. WPSK51 plastic packaged pressure sensor is a high-volume, low-cost civilian product, mainly used in the water treatment industry, with the characteristics of small size, light weight, compact structure, and good stability.

Feature:

* High sensitivity, low power consumption
* Excellent stability
* Temperature Compensated, Excellent Linear Output
* Provide serial port (UART), PWM waveform and other output methods
* Long lifespan
* Anti-water vapor interference, no poisoning.

INQUIRY

MANUAL

Share To:

APPLICATION

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

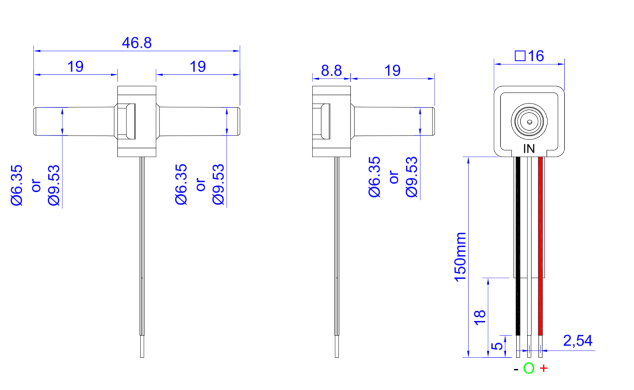

Specification Product Size

Technical Data Sheet

Characteristic	Symbol	Min	Typical	Max	Unit
Pressure range	Pop	0	---	1000	kPa
Operating Voltage (1)	VDD	4.75	5.0	5.25	Vdc
Operating current	IO	0.440	2.3	2.8	mAdc
Min pressure offset (0 to 50°C)@VS=5V (2)	VOff	4.440	0.50	0.560	Vdc
Full Scale Output (0 to 50°C)@VS=5V (3)	VFSO	3.880	4.50	4.560	Vdc
Full Scale Span (0 to 50°C)@VS=5V (4)	VFSS	---	4.000	4.120	Vdc
Accuracy (5)(0 to 50°C)	---	---	---	±1.5	%VFSS
Sensitiviyt	V/P	---	4	---	mV/kPa
Response Time （6）	tR	---	1.0	---	mS
Preprocessing time (7)	---	---	10	---	mS
Offset Stability (8)	---	---	±0.5	---	%VFSS
Power-on time	tpon	---	---	100	mS
Note: (V_S=5 Vdc, T_A=25℃, P1>P2 unless otherwise stated), the above parameters are in the range of 0~1000KPa.
