Pyroelectric Flame Sensor RPFA913CC

Summary:

RPFA913CC pyro-electric flame sensor uses lithium tantalate single crystal as the sensitive element material. The Curie temperature of lithium tantalate crystal material is above 600℃, the relative dielectric constant is small, and the specific detectivity is high.

In a wide range of room temperature, the pyroelectric coefficient of the material changes very little with temperature, and the temperature change rate of the output signal is only 1-2‰. The temperature stability of the sensor performance is very good, and the spectral response consistency is very good in the wavelength range of 1-20um.

Applications:
It's widely used in various oil storage stations, large warehouses, factory workshops, forests, charging piles; and standard configuration for high fire risk areas such as petroleum, chemical, paper-making, forests, and garages.
It also becomes popular in high-end residential, commercial, and general industrial fields.

Feature:

* 3.8um detection band;
* TO-5 package, single channel, voltage mode;
* Low microphone effect, large FOV, high detection rate;
* Detection band measurement of flame signal;

INQUIRY

MANUAL

Share To:

APPLICATION

Fire Detector

The automatic fire alarm system is one of the important components of daily life and industrial safety monitoring system. It is an important means to ensure safe operation, reduce casualties and property losses in the event of fire.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

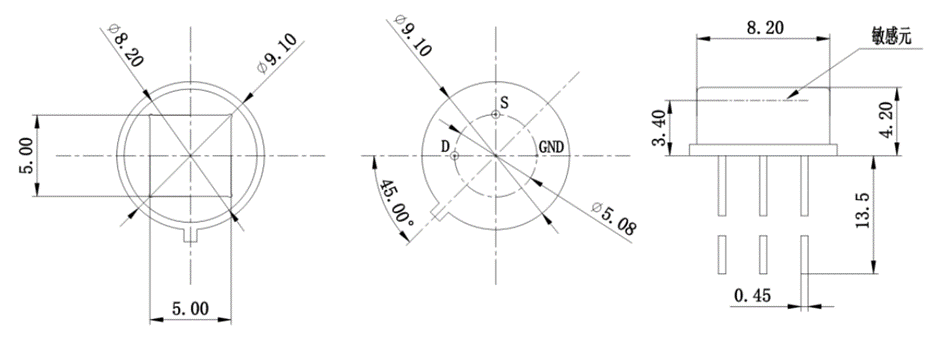

Specification Product Size

Technical Data Sheet

Item	Typical	Unit
Window Size	5.0*5.0	mm
Sensitive element size	3*3	mm
Filter center wavelength	3.8	um
Electrical time constant	5	s
Thermal time constant	200	ms
Source Voltage	0.4~0.7	v
Working Voltage	2~15	v
Recommended voltage	3~5	v
Output signal V0 (500K,10HZ,25℃)	2.0±10%	v
Output noise voltage VN (10HZ, BW1HZ, 25℃)	≤150	mv
Voltage response rate (no window) Rv (500K, 10HZ, 25°C)	≥500	v/w
Specific detection rate (no window) D* (500K, 10HZ, BW1HZ, 25℃)	≥5×108	cmHz½/W
Field of view(FOV)	>115	°
Detection distance	>35	m
Working temperature/Storage temperature	-40~+85	℃
Remarks: The magnification of the testing machine is 80dB.
