Ultrasonic Oxygen Sensor US1000

Summary:

The US1000 ultrasonic oxygen sensor is mainly used in the detection of oxygen concentration and flow in oxygen concentrators and related products. It uses ultrasonic sensors to detect the propagation speed of ultrasonic waves in gas, and uses temperature compensation to accurately calculate oxygen concentration and flow.

Feature:

* Good consistency
* Real-time response
* High precision
* Good stability
* Long lifespan
* Calibration-free

INQUIRY

MANUAL

Share To:

APPLICATION

Oxygenator

The oxygenator uses molecular sieve physical adsorption and desorption technology to adsorb nitrogen in the air and obtain high-purity oxygen after purification. The current oxygen therapy and oxygen health care equipment is roughly divided into health care oxygen machines with an oxygen concentration of 30%-60%, molecular sieve medical oxygen generators with an oxygen concentration of more than 90%, oxygen cylinder with higher oxygen concentration,and portable oxygen cylinders.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

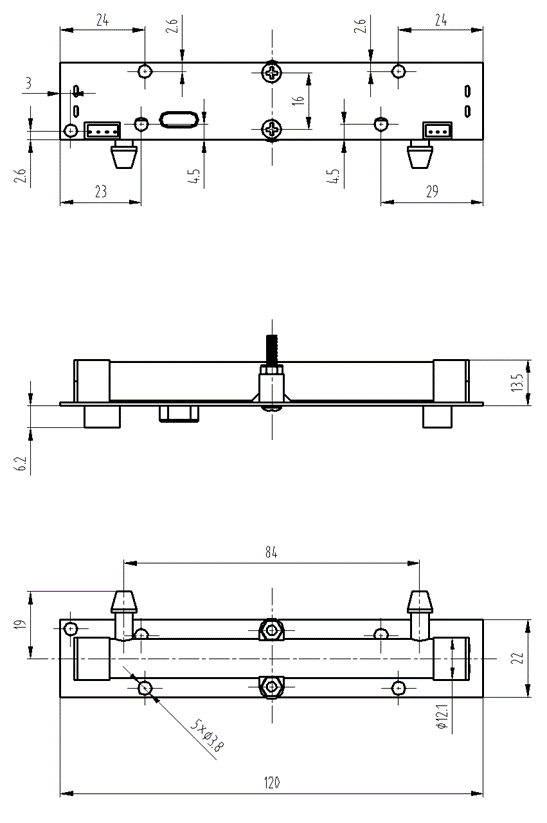

Specification Product Size

Technical Data Sheet

Model No.		US1000
Detection method		ultrasound
Detection gas		O₂
Concentration	Measuring range	21%～95.6%
	Measurement accuracy	± 1.5%FS @(5～45)℃
	Resolution	0.1%
	Response time	≤15s T90 （Can be customized according to customer requirements, the fastest ≤1s ）
Flow	Measuring range	0～10L/min
	Measurement accuracy	±0.2L/min@(5～45)℃
	Resolution	0.1L/min
	Response time	≤15s T90 （Can be customized according to customer requirements, the fastest ≤1s ）
Working voltage		4.5～13.2V
Average current		≤30mA
Working environment		0～55℃； 0～95%RH（ no condensation ）
Storage environment		-30～65℃； 0～95%RH（ no condensation ）
Output signal		UART(3.3V)
Dimensions		120mm30mm30mm(LWH)
Weight		25g
Lifespan		≥5 years
