ZH10 Laser Dust All In One Module

May 26,2023

ZH10 is a general-purpose, miniaturized laser dust all-in-one sensor module, which can detect dust particles in the air by using the principle of Mie scattering. Internally integrated MEMS VOC, temperature and humidity sensors, processed through professional algorithms and calibration detection process, the sensor has good consistency and stability.

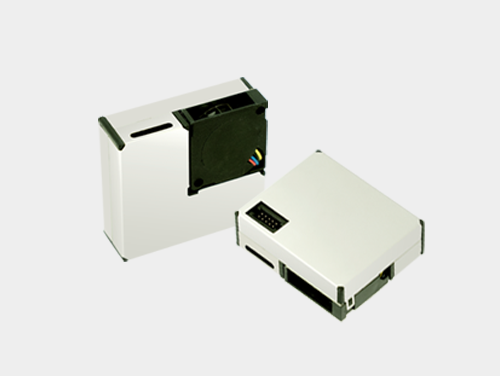

ZH10 laser dust all-in-one module

Principle Introduction

The laser dust sensor uses a laser LED as the light source. When the fine particles in the air are pushed by the constant flow fan into the area where the laser beam is located, the laser light will be scattered. Position the photodetector so that it only receives scattered light. The electrical signal is generated by the photoelectric effect of the photodetector. After being amplified by the circuit, the fine particle concentration value can be obtained.

Technical Parameters

PM2.5	Particle size range detection	0.3-10μm
	Effective range	0-1000μg/m³
	Data Refresh Frequency	1s
	Detection accuracy (Test conditions: 25±2°C, 50±10%RH, TSI8530, cigarettes, GBT18801-2015)	PM1.0/PM2.5
		0-100 μg/m³：±10μg/m³； 101-1000μg/m³：±10% of reading
		PM10
		0-100 μg/m³：±25μg/m³； 101-1000μg/m³：±25% of reading
	Power-on stabilization time	<10s
VOC	Output	0-3 level pollution signal
	Power-on stabilization time	<3min
Temperature		－10～60℃：±1℃
Humidity		0～90％RH (no condensation)；±5％RH
Output data		UART_TTL output (3.3V level)
		PWM output (3.3V level)
Operating voltage		5V±0.5V (DC), ripple≤50mV
Working current		＜130mA
Power saving mode current		＜20mA
Working humidity		15～90％RH (no condensation)
Working temperature		－10～60℃
Storage temperature		－30～70℃
Dimensions		38×35×12mm (L×W×H)
Weight		＜30g
lifespan		≥3 years

ZH10 can detect PM2.5, VOC, temperature and humidity indicators at the same time, and the minimum resolution particle diameter is 0.3μm. It has the characteristics of good consistency, real-time response, accurate data, small size, and strong anti-interference ability.

ZH10 ZH10

Application field

Laser dust sensor can accurately quantify PM2.5 content. With the improvement of people's attention to indoor air quality, laser dust sensors are embedded in various air detectors, air purifiers, fresh air systems, fresh air air conditioners and other equipment to provide people with a healthy and comfortable home and office environment .

air purifier

Air Purifier

air quality meter

Air Quality Meter

fresh air conditioner

Fresh Air Conditioner

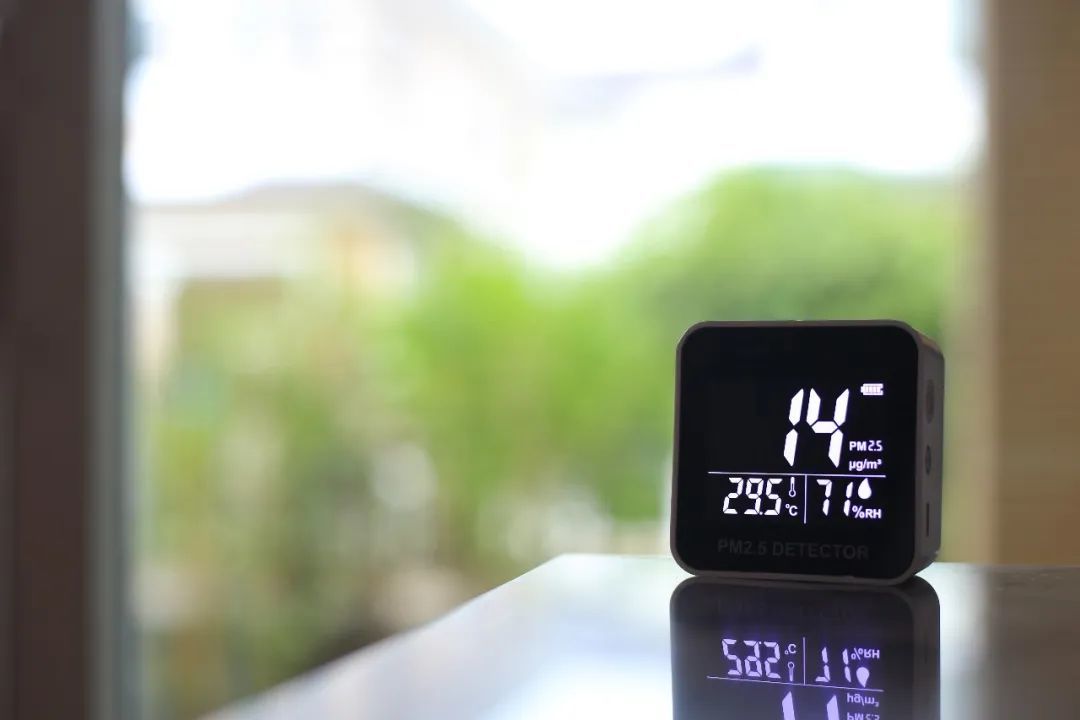

air purifier pm2.5 detector

Points to note when using ZH10

When using the laser dust sensor, care should be taken to avoid blockage of the air inlet and outlet, avoid placing the sensor in the air duct, and prevent the sensor fan speed from changing, which will affect the measurement accuracy.

How to install ZH10 The dust collection hole is the air inlet inside the sensor, which needs to be in good contact with the outside air; the fan installation position is the air outlet inside the sensor. When the sensor is installed and used, avoid strong airflow interference around the sensor; if it cannot be avoided, try to keep the direction of the external airflow perpendicular to the direction of the internal airflow of the sensor.

Arrows indicate airflow perpendicular to the sensor face

ZH10 air inlet direction When designing the detection chamber of the whole machine, it is necessary to fully consider the effective area of the sensor sampling port to ensure the smoothness of the sampling gas path as much as possible. Small sampling area and excessive air resistance will seriously affect the accuracy of sensor data.
