Compact 4-in-1 Air Quality Sensor Module ZH10-VHT

Summary:

ZH10 Compact 4-in-1 Air Quality Sensor Module is a common type, miniature size sensor module, using laser scattering principle to detect the dust particles in air, with good consistency and stability. Internal integration of MEMS, VOC, temperature and humidity sensors, processed by professional algorithms and calibrated detection processes. The sensor has good consistency and stability. The sensor has both serial output and PWM output capabilities, which is easy to use, small in size, and easy to integrate.

Main Applications
Air purifiers;
Ventilation systems;
Portable instrument;
Air quality monitoring equipment;
Air conditioner;
Consumer electronics products.

Feature:

* Good consistency;
* Real time response;
* Accurate data;
* Miniature size;
* Good anti-interference ability;
* Minus resolution of particle diameter 0.3 µm; Compatible with VOC and temperature and humidity output.

INQUIRY

MANUAL

Share To:

APPLICATION

Air Purifier

Winsen is a world-renowned gas sensor manufacturer and supplier. A variety of sensors are intelligently combined and developed to form the overall concept of the module. The extremely flexible assembly combination can meet the sensitivity, corresponding speed, stability, power consumption and size requirements of all air purifiers on the market.

Winsen Technology has provided accurate gas detection solutions for more than 1,000 fresh air enterprises, which has also established the influence of Winsen sensors in the air purification market. In the future, Winsen will launch more intelligent and miniaturized all-in-one integrated modules to meet the various needs of different customers in the ventilation system market.

MORE +

Other Detector

Formaldehyde detector is an instrument for detecting formaldehyde. Generally, semiconductor sensors and electrochemical sensors are used to realize the rapid semi-quantification of formaldehyde in indoor air on the spot, which is characterized by simple structure, small size, intuitive,easy to carry and use.

MORE +

Air Quality Monitoring in Public Places

Outdoor air quality monitoring is a process of measuring the concentration of pollutants in the atmospheric environment, observing and analyzing their changes and their impact on the environment. Air pollution monitoring is to measure the types and concentrations of pollutants in the atmosphere, and observe their spatial distribution and changing rules.

MORE +

Outdoor Air Quality Monitoring

MORE +

Indoor Air Quality Monitoring

The World Health Organization's "Indoor Air Pollution and Health" pointed out that the current level of indoor air pollution is 5-10 times higher than outdoor pollution, and 4% of global diseases are related to indoor air quality, and about 2 million people die prematurely each year from diseases caused by indoor air pollution.

MORE +

Air Quality Monitor

Air pollution is becoming more and more serious. The value of PM2.5 (referring to particulate matter with aerodynamic equivalent diameter less than or equal to 2.5 microns in ambient air) is a parameter index.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

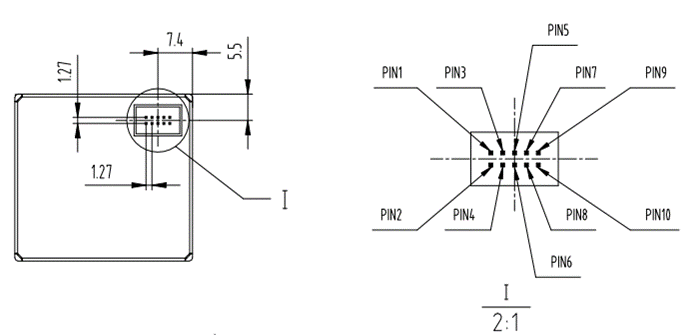

Specification Product Size

Technical Data Sheet

PM2.5	Detectable Particle Diameter	0.3-10 μm
	Effective Range	0-1000 μg/m³
	Detection Interval	1s
	Detection Accuracy	0-100 μg/m³: ±10μg/m³； 101-1000 μg/m³: ±10% reading (Test condition: 25±2℃, 50±10%RH, TSI8530, smoke, GBT18801-2015)
	Preheating Time	<10s
VOC	Detection Accuracy	±20%(@0.5-1ppm)；±25%(@5ppm)
	Preheating Time	<5min
Temperature		－10～60℃:± 1℃; Resolution:0.1℃
Humidity		15～90％RH(No Condensation); ±5％RH; Resolution: 1%RH
Data output		UART_TTL Output(3.3V Level, Default)
		PWM Output(3.3V Level, Default)
Working Voltage		5V±0.5V (DC)，Ripple≤50mV
Working Current		＜150mA
Dormancy Current		＜40mA
Working Humidity		15～90％RH(No Condensation)
Working Temperature		－10～60℃
Storage Temperature		－30～70℃
Dimension		38×35×12mm(L×W×H)
Weight		＜30g
Lifespan		≥5years
