Pipeline Pressure Monitoring

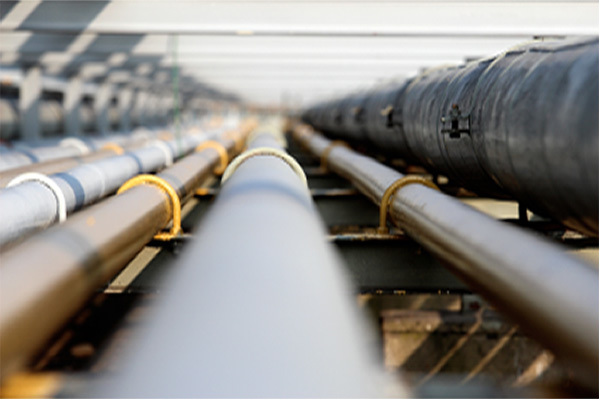

The combustion gas used in the city is supplied to urban residents from the gas source point through the gas distribution and supply system. The main component of the gas distribution system is the gas pipeline. Compared with other pipelines, the tightness of gas pipelines has particularly strict requirements, because the pressure of gas in the pipeline is different. The higher the pressure, the more likely it is that the pipe joints will fall off or the pipe itself will crack. Once there is air leakage, it may cause serious accidents such as fire, explosion, leakage and poisoning.
The gas pipelines of various pressure levels in the gas transmission and distribution system should be connected through a pressure regulating device. When it is possible to exceed the maximum allowable working pressure, safety protection equipment to prevent pipeline overpressure should be installed.
In the gas pipeline pressure monitoring system, the pressure sensor can be used to monitor the pipeline pressure in real time, and in the gas furnace, the pressure sensor is also used to measure the pressure of the gas in the gas supply pipeline, so as to judge whether the gas is sufficient or whether it is leaking.
 |
|
▲WPAK63 pressure sensor |
Winsen WPAK63 series pressure sensor is a pressure core packaged with high-precision diffused silicon pressure-sensitive chip and mature production process.As a high-performance pressure sensitive element, it can be easily amplified and assembled into the pressure transmitter with standard signal output.
The core is a Φ19mm standard OEM pressure core, which is highly interchangeable with the same type of other similar products. It can measure gauge pressure, absolute pressure and sealing pressure. It is packaged in all stainless steel 316L and has strong corrosion resistance. Winsen can provide customized service for pressure sensor such as all-welded structure, wide temperature compensation, special shape, high reliability, strong shock resistance and vibration resistance.
