Infrared Dust Sensor ZPH04

Summary:

This sensor integrates infrared PM2.5 detection technology, using particle counting principle to detect PM2.5 in the environment. It can detect the particles (diameter ≥1μm).

Feature:

* Good Stability for long time

* Easy to install and use

* Interface output is multiple
* High Sensitivity

* Good Consistency

* Modular design & Anti-interference

INQUIRY

MANUAL

Share To:

APPLICATION

Vehicle Air Quality

Vehicle exhaust contains hundreds of different compounds, including suspended solids, carbon monoxide, carbon dioxide, hydrocarbons, nitrogen oxides, lead and sulfur oxides. Among them, hydrocarbons (HC) in automobile exhaust are the result of direct emission of unburned or insufficiently burned gasoline in the form of gas. Under the action of ultraviolet light,

MORE +

Air Purifier

Winsen is a world-renowned gas sensor manufacturer and supplier. A variety of sensors are intelligently combined and developed to form the overall concept of the module. The extremely flexible assembly combination can meet the sensitivity, corresponding speed, stability, power consumption and size requirements of all air purifiers on the market.

Winsen Technology has provided accurate gas detection solutions for more than 1,000 fresh air enterprises, which has also established the influence of Winsen sensors in the air purification market. In the future, Winsen will launch more intelligent and miniaturized all-in-one integrated modules to meet the various needs of different customers in the ventilation system market.

MORE +

Other Detector

Formaldehyde detector is an instrument for detecting formaldehyde. Generally, semiconductor sensors and electrochemical sensors are used to realize the rapid semi-quantification of formaldehyde in indoor air on the spot, which is characterized by simple structure, small size, intuitive,easy to carry and use.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

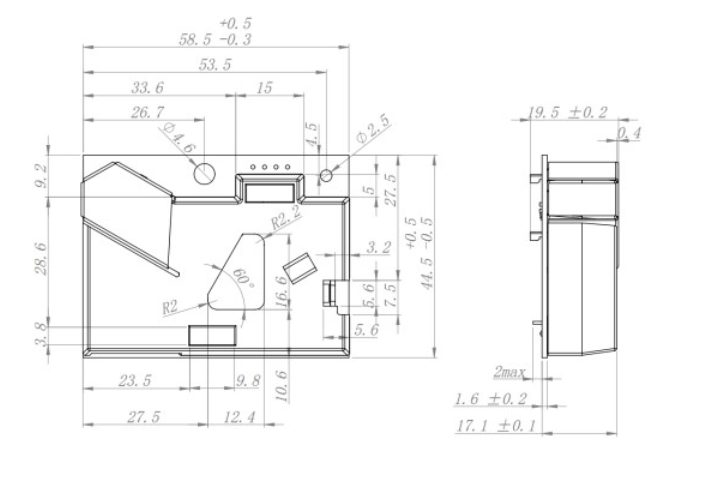

Specification Product Size

Technical Data Sheet

Model No.		ZPH04
Working voltage range		5±0.2 V (DC)
Output Mode		UART / PWM
Output signal voltage		4.3±0.2 V
Detection ability		Smallest particles 1 μm diameter
Warm-up time		1min (Device warming-up time)
Working current		≤150mA
Humidity Range	Storage	≤95%RH
	Working	≤95%RH
Temperature Range	Storage	-30℃～50℃
	Working	0℃～50℃
Size		59.5×44.5×20mm（L×W×H）
Physical interface		EH2.54-5P(Terminal socket)
