Electrochemical Ammonia Nitrogen Sensor MW-NH101


+
  • MW-ORP101(1).png

Summary:

MW-NH101 sensor is an electrochemical ammonia nitrogen water quality detection sensor. Ammonium ions in the solution to be tested permeate through the sensor selective membrane, causing changes in membrane potential, and the change in membrane potential is proportional to the concentration of ammonium ions in the solution. Ammonium ion concentration.

Feature:

* Short response time
* Sigh sensitivity
* Low power consumption
* Linear output
* Analog signal output

Share To:


APPLICATION

Water Quality

As we all know, there are a lot of pollutants in swimming pool water, and the polluted water can easily become a source of transmission of some diseases, causing various discomforts to swimmers. Therefore, the use of online water quality monitoring equipment for real-time monitoring and strict filtration and disinfection of pool water is an important link to prevent the spread of various diseases, protect swimmers and improve the quality of pool water.

MORE +

Pollution Source Detection

The septic tank is a device for processing feces and filtering. The principle is that the solidified material is decomposed at the bottom of the pool, and the hydrated objects in the upper layer enter the pipeline and flow away, preventing the pipeline from clogging and providing solidified objects (feces and other garbage)with enough time to hydrolyze.

MORE +

Aquaculture

Whether it is fish, mussels or other aquatic organisms, there must be an suitable environment for their growth in order to achieve a good harvest. The environmental conditions of water are one of the important reasons that affect the yield of aquatic products. With the acceleration of the construction of the Internet of Things, the intelligence of aquaculture has also become a development trend of large-scale aquaculture in the future.

MORE +

Smart Agriculture Greenhouse

Compared with traditional agriculture, greenhouse planting is an intensive industry. In the current greenhouse projects, the main economic crops are vegetables, flowers, medicinal materials, etc. For agricultural planting, greenhouses can provide a relatively stable and controllable planting environment to improve the stable yield and quality assurance of crops. At the same time, greenhouse planting can also achieve mechanized control and reduce labor costs.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

PARAMETER

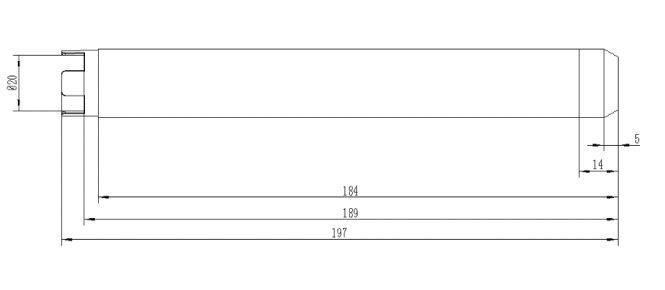

Specification Product Size

Technical Data Sheet

Model No. MW-NH101
Range 0~1000 mg/L
Temperature range 10~50 ℃
Resolution 1 mg/L
Response time (T90) ≤30 s
Work pressure <0.1 Mpa
Sensitivity 0.1mV/mg/L
Temperature compensation without temperature compensation
Display method no display
Calibration method Two point calibration
Interface 2 positive and negative connecting wires
