Flame Sensor RD-913FB1

  • Flame-Sensor-RD-913FB1.png


RD-913FB1 pyro-electric flame sensor uses lithium tantalate single crystal as the sensitive element material. The Curie temperature of lithium tantalate crystal material is above 600℃, the relative dielectric constant is small, and the specific detectivity is high.


* 3.8um detection band;
* TO-5 package, single channel, voltage mode;
* Low microphone effect, large FOV, high detection rate;
* Detection band measurement of flame signal;

Share To:


Infrared Alarm

The infrared alarm to prevent human intrusion is composed of pyroelectric infrared sensor and alarm controller. When someone enters the range to be protected, the sensor generates an electrical signal and transmits it to the controller, and the controller sends the alarm signal to the terminal through signal processing.


Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

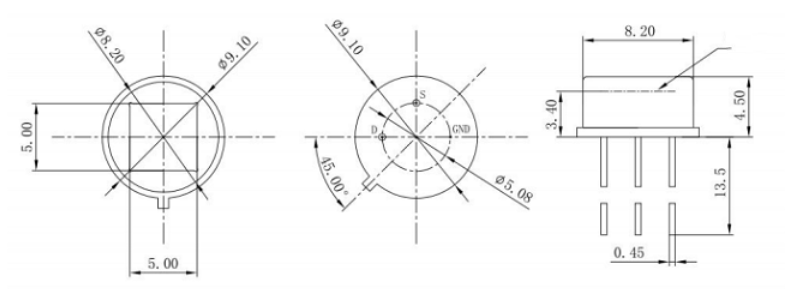

Specification Product Size

Technical Data Sheet

Item Typical Unit
Window Size 5.0*5.0 mm
Sensitive element size Φ2.5 mm
Filter center wavelength 3.8 um
Electrical time constant 5 s
Thermal time constant 200 ms
Source Voltage 0.4~0.7 v
Working Voltage 2~15 v
Recommended voltage 3~5 v
Output signal V0 (500K,10HZ,25℃) 2.9±10% v
Output noise voltage VN (10HZ, BW1HZ, 25℃) ≤150 mv
Voltage response rate (no window) Rv (500K, 10HZ, 25°C) ≥500 v/m
Specific detection rate (no window) D* (500K, 10HZ, BW1HZ, 25℃) ≥5×108 cmHz½/W
Field of view(FOV) >115 °
Detection distance 35~50 m
Working temperature -30~+75
Storage temperature -40~+80
Remarks: The magnification of the testing machine is 80dB.
