Infrared Carbon Dioxide(CO2) Sensor MH-Z1911A

Summary:

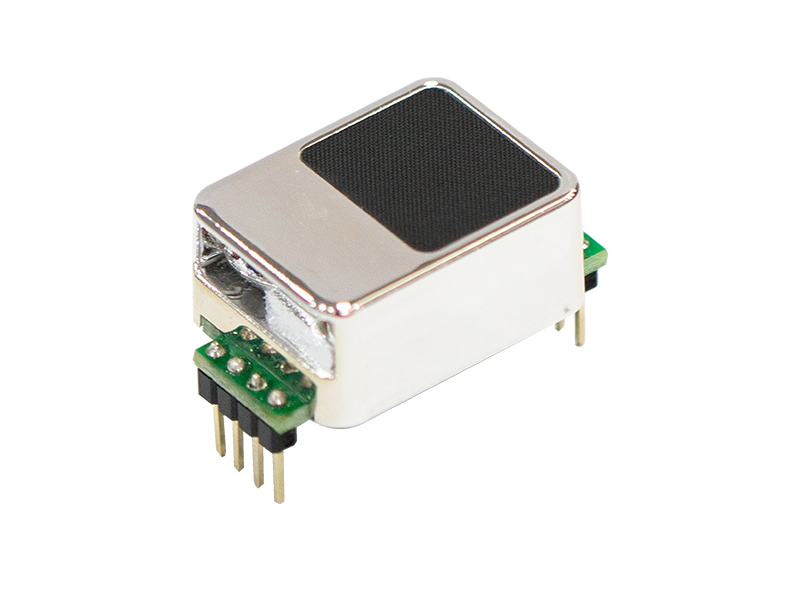

MH-Z1911A infrared CO2 sensor is intelligent sensor as shown in Figure 1,common type, small size, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation, and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

Applications：
*HVAC refrigeration *Air cleaner device
*Indoor air quality monitoring *Smart home
*Ventilation system

Feature:

* High sensitivity, low power consumption
* Good stability
* Temperature compensation, excellent linear output
* Multiple output modes: UART, PWM
* Long lifespan
* Anti-water vapor interference, anti-poisoning

INQUIRY

MANUAL

Share To:

APPLICATION

HVAC

MORE +

Cleaning Appliance

Cleaning appliances such as washing machines and sweeping robots in the lazy economy have fast product upgrade and functional integration has become the general trend. The addition of Winsen technology dust sensors, VOC sensors, temperature sensors etc., brings more possibilities for the performance upgrade of product function innovation.

MORE +

CO2 Detector

Most people spend about 90% of their time indoors. The air we breathe indoors and our health are affected by many factors, including outdoor air quality, the movements of people indoors, and the design, construction, operation and maintenance of buildings.

MORE +

Ventilation

Winsen Technology has provided accurate gas detection solutions for more than 1,000 fresh air enterprises, which has also established the influence of Winsen sensors in the air purification market. In the future, Winsen will launch more intelligent and miniaturized all-in-one integrated modules to meet the various needs of different customers in the ventilation system market.

MORE +

Air Quality Monitoring in Public Places

Outdoor air quality monitoring is a process of measuring the concentration of pollutants in the atmospheric environment, observing and analyzing their changes and their impact on the environment. Air pollution monitoring is to measure the types and concentrations of pollutants in the atmosphere, and observe their spatial distribution and changing rules.

MORE +

Air Quality Monitor

Air pollution is becoming more and more serious. The value of PM2.5 (referring to particulate matter with aerodynamic equivalent diameter less than or equal to 2.5 microns in ambient air) is a parameter index.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

Specification Product Size

Technical Data Sheet

Model No.	MH-Z1911A	Preheat time	1 min
Detection Gas	CO2	Response Time	T90 <120s
Working voltage	DC 5.0±0.1V	Working temperature	-10 ~ 50 ℃
Average current	< 30mA (@5V power supply)	Working humidity	0~95%RH(No condensation)
Peak current	125mA (@5V power supply)	Storage temperature	-20~60 ℃
Interface level	3.3 V (Compatible with 5V)	Weight	5g
Output signal	Serial Port (UART) (TTL level 3.3V)	Detection Range	400~10000ppm(optional,see table2.)
Output signal	PWM	Lifespan	> 10 years

Detection Gas	Formula	Detection Range	Resolution	Accuracy
Carbon Dioxide	CO2	400~2000ppm	1ppm	± (50ppm+5% reading value)
		400~5000ppm
		400-10000ppm

MH-Z1911A
