NDIR Infrared Refrigerant Gas Sensor MH-441D-454B
Summary:
MH-441D-454B infrared gas sensor is a miniature universal intelligent sensor, which adopts NDIR theory to detect concentration of CH4 in air and has good selectivity, stable performance, long life, also is independent of Oxygen. The inside temperature sensor could be used for temperature compensation. This miniature infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, micro machine workout and superior circuit design.
It is convenient in use and also instead of catalytic component directly, widely used in various occasions with flammable and explosion hazard gas.
Feature:
* High sensitivity, high resolution, fast response
* Output method: UART, analog voltage signal
* Temperature compensation, excellent linear output
* Excellent stability, Long lifespan
* Anti-poisons, anti-vapor interference
* Can replace catalytic type gas sensor directly
Share To:
APPLICATION
The World Health Organization's "Indoor Air Pollution and Health" pointed out that the current level of indoor air pollution is 5-10 times higher than outdoor pollution, and 4% of global diseases are related to indoor air quality, and about 2 million people die prematurely each year from diseases caused by indoor air pollution.
Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry
PARAMETER
Technical Data Sheet
Technical Parameters
|
Part Number |
MH-441D-454B |
|
Detection Gas |
Refrigerant |
|
Detection Range |
0~5%VOL |
|
Working Voltage |
3.6~5V DC (Reuqire powered by safety barrier) |
|
Average Current |
＜85mA |
|
Interface Level |
3.0V |
|
Output Signal |
UART(3.0V) |
|
0.4~2.0V DC(Require output by safety barrier) |
|
|
Warm-up time |
3 min |
|
Response time |
T90<30 seconds |
|
Working Temperature |
-20°C ~ 60°C |
|
Working Humidity |
0~95%RH(no condensation) |
|

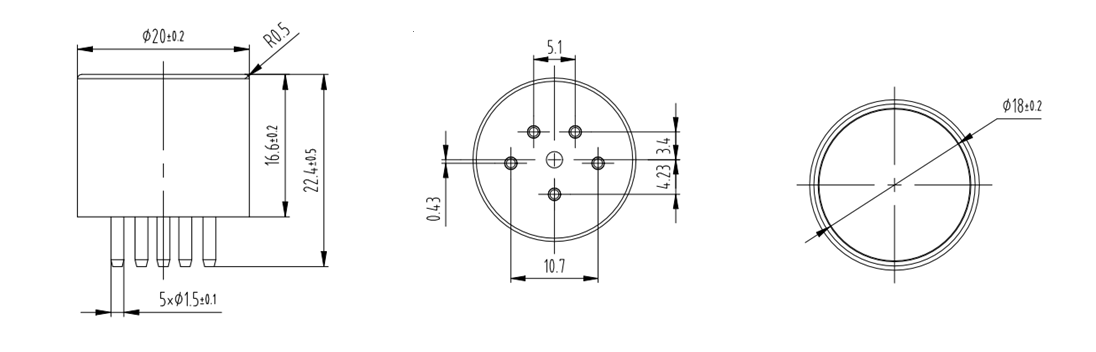

Sizes |
Φ20×22.4mm |
|
Weight |
35g |
|
Lifetime |
>5 years |
|
Defense Grade |
IP54 |
|
Power, communication terminal Intrinsic safety |
Ui=7.5VDC，Ii=265mA， Pi=0.5W，Ci=10μF，Li=0mH |
Measuring Range and Refrigerant conversion factor
|
Target Gas |
Molecular Formula |
Measuring Range |
Resolution |
No. of decimal |
Accuracy |
Relativecoefficient |
|
R32 |
CH2F2 |
0～5.00%Vol |
0.01%Vol |
2 |
±5%F.S(0.00%-1.00%) |
1 |
|
±10%F.S(1.00%-5.00%) |
||||||
|
454B |
CH2F2(68.9%) |
0～5.00%Vol |
0.01%Vol |
2 |
±5%F.S(0.00%-1.00%) |
0.91 |
|
C3H2F4(31.1%) |
±10%F.S(1.00%-5.00%) |
|||||
|
R410A |
CH2F2(50%) |
0～5.00%Vol |
0.01%Vol |
2 |
±5%F.S(0.00%-1.00%) |
0.81 |
|
C2HF5(50%) |
±10%F.S(1.00%-5.00%) |
|||||
|
R134A |
C2H2F4 |
0～5.00%Vol |
0.01%Vol |
2 |
±5%F.S(0.00%-1.00%) |
0.28 |
|
±10%F.S(1.00%-5.00%) |
