Temperature and Humidity Sensor Module ZS13
Summary:
ZS13 is a brand new product, which is equipped with special ASIC sensor chip, high-performance semiconductor silicon-based capacitive humidity sensor and a standard on-chip temperature sensor, it uses standard I²C output signal format. ZS13 products have stable performance in high temperature and high humidity environment; At the same time, the product has great advantages in accuracy, response time and measurement range. Each sensor is strictly calibrated and tested before leaving the factory to ensure and meet the large-scale application of customers.
Application
Home appliance fields: home appliance, humidity control, HVAC, dehumidifiers, smart thermostats, and room monitors etcs;
Industrial fields: automobiles, testing equipment, and automatic control devices;
Other fields: data loggers, weather stations, medical and other related temperature and humidity detection devices.
Feature:
Fully calibrated
Wide power supply voltage range, from 2.2V to 5.5V
Digital output, standard I²C signal
Quick response and strong anti-interference ability
Excellent long-term stability under high humidity condition
Share To:
APPLICATION
Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry
PARAMETER
|
Parameter |
Condition |
Min |
Typical |
Max |
Unit |
|
Resolution |
Typical |
- |
0.024 |
- |
%RH |
|
Accuracy error1 |
Typical |
- |
±2 |

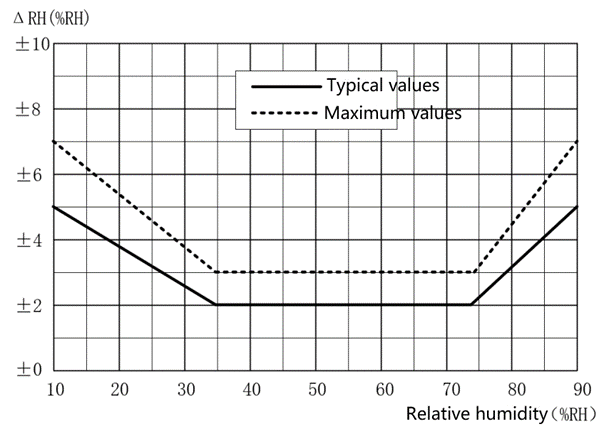

Refer toFigure 1 |
%RH |
|
Repeatable |
- |
- |
±0.1 |
- |
%RH |
|
Hysteresis |
- |
- |
±1.0 |
- |
%RH |
|
Non-linear |
- |
- |
<0.1 |
- |
%RH |
|
Response time2 |
τ63 % |
- |
<8 |
- |
s |
|
Scope of work3 |
- |
0 |
- |
100 |
%RH |
|
Prolonged Drift4 |
Normal |
- |
< 1 |
- |
%RH/yr |
Technical parameters of temperature
|
Parameter |
Condition |
Min |
Typical |
Max |
Unit |
|
Resolution |
Typical |
- |
0.01 |
- |
°C |
|
Accuracy error5 |
Typical |
- |
±0.3 |
- |
°C |
|
Max |

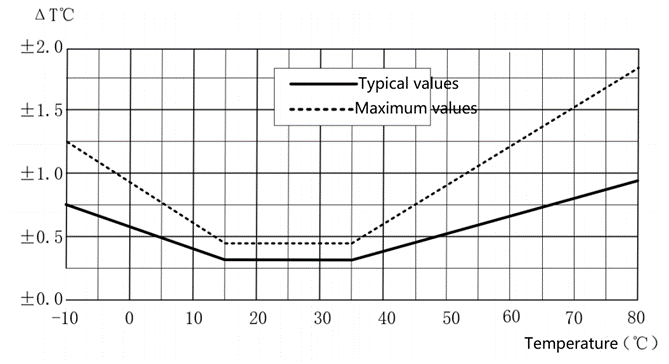

See figure2 |
|
- |
||
|
Repeatable |
- |
- |
±0.1 |
- |
°C |
|
Hysteresis |
- |
- |
±0.1 |
- |
°C |
|
Response time6 |
τ63% |
5 |
- |
30 |
s |
|
Scope of work |
- |
-40 |
- |
85 |
°C |
|
Prolonged Drift |
- |
- |
<0.04 |
- |
°C/yr |
Electrical characteristics
|
Parameter |
Condition |
Min |
Typical |
Max |
Unit |
|
Power Supply |
Typical |
2.2 |
3.3 |
5.5 |
V |
|
Power Supply,IDD7 |
Sleep |
- |
250 |
- |
nA |
|
Measure |
- |
980 |
- |
µA |
|
|
Consumption8 |
Sleep |
- |
- |
0.8 |
µW |
|
Measure |
- |
3.2 |
- |
mW |
|
|
Communication Format |
I2C |
||||
