Thermopile Sensor MRT-511
Summary:
MRT-511 sensor is a thermoelectric reactor temperature sensor, based on MEMS process, hundreds of thermocouples are connected in series. Using Seebeck's principle, when there is a temperature difference between the target and the environment, the sensor outputs the corresponding voltage, so as to detect the presence of the target or the temperature of the target.
Feature:

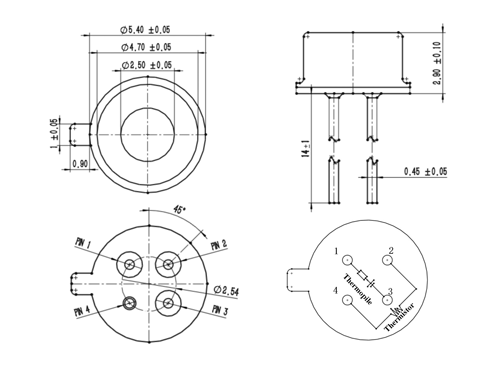

* TO-46 metal package
* High sensitivity
* Quick response, Good stability
* High filter transmittance
* High precision NTC
APPLICATION
Due to the impact of the Covid epidemic, household body temperature products have been widely used. The forehead thermometer has ushered in vigorous development under the background of epidemic. At present, the shortage of infrared thermometers is about 60,000 units, and the shortage of handheld infrared thermometers is about 550,000 units in Chinese market. There is a great challenge for infrared temperature sensor companies, and it is also an explosive opportunity.
Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry
PARAMETER
Technical Data Sheet
Parameter | Value | Unit | Remarks |
Sensitive area | 1.6×1.6 | mm | / |
Field of view | 105 | Degree | Above 50% |
Thermopile resistor | 120±30 | KΩ | 25℃ |
Noise voltage | 45 | nV/Hz1/2 | 25℃ |
Noise equivalent power | 0.27 | nW/Hz1/2 | 500K, 1Hz, 25℃ |
Response rate | 124 | V/W | 500K, 1Hz, 25℃ |
Time constant | 10 | ms | |
Detection rate | 1.0 ×108 | cmHz1/2/W |
500K, 1Hz, 25℃ |
NTC resistance | 100 ± 1% | KΩ | 25℃ |
NTC(β) | 3950 ± 1% | / | 25℃/50℃ |
Working temperature | -30 ~125℃ |
