Air-Quality Detection module ZP16 - Bent pins

Summary:

The ZP16 air quality module uses an advanced chip thick film semiconductor gas sensitive element. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence & etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Application
Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.

Feature:

* High sensitivity
* Excellent long-term stability
* Low power consumption, long life
* Calibrated before shipment
* High cost-effective

INQUIRY

MANUAL

Share To:

APPLICATION

Air Purifier

Winsen is a world-renowned gas sensor manufacturer and supplier. A variety of sensors are intelligently combined and developed to form the overall concept of the module. The extremely flexible assembly combination can meet the sensitivity, corresponding speed, stability, power consumption and size requirements of all air purifiers on the market.

MORE +

Cleaning Appliance

Cleaning appliances such as washing machines and sweeping robots in the lazy economy have fast product upgrade and functional integration has become the general trend. The addition of Winsen technology dust sensors, VOC sensors, temperature sensors etc., brings more possibilities for the performance upgrade of product function innovation.

MORE +

Ventilation

Winsen Technology has provided accurate gas detection solutions for more than 1,000 fresh air enterprises, which has also established the influence of Winsen sensors in the air purification market. In the future, Winsen will launch more intelligent and miniaturized all-in-one integrated modules to meet the various needs of different customers in the ventilation system market.

MORE +

Air Quality Monitoring in Public Places

Outdoor air quality monitoring is a process of measuring the concentration of pollutants in the atmospheric environment, observing and analyzing their changes and their impact on the environment. Air pollution monitoring is to measure the types and concentrations of pollutants in the atmosphere, and observe their spatial distribution and changing rules.

MORE +

Outdoor Air Quality Monitoring

MORE +

Indoor Air Quality Monitoring

The World Health Organization's "Indoor Air Pollution and Health" pointed out that the current level of indoor air pollution is 5-10 times higher than outdoor pollution, and 4% of global diseases are related to indoor air quality, and about 2 million people die prematurely each year from diseases caused by indoor air pollution.

MORE +

Air Quality Monitor

Air pollution is becoming more and more serious. The value of PM2.5 (referring to particulate matter with aerodynamic equivalent diameter less than or equal to 2.5 microns in ambient air) is a parameter index.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

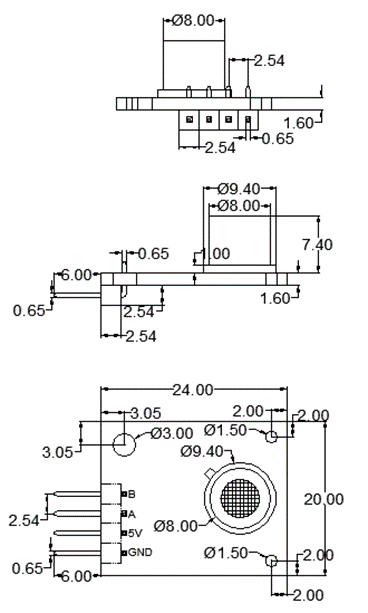

Specification Product Size

Technical Data Sheet

Model No.	ZP16
Detection Gas	formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, smoke of cigarette, essence &etc.
Physical Interface	XH2.54-4P bent pins
Measurement range	0-10mg/m3
Resolution	0.05mg/m3
Working Voltage	5.0±0.2V DC (No voltage reverse connect protection)
Output	UART(5V)
Working Current	≤60mA
Warm-up Time	3min.
Operating Temperature	0～50℃
Operating Humidity	≤95%RH
Storage Temperature	－20～60℃
Storage Humidity	≤60%RH
Weight	≤20g
