Conductivity Sensor MW-C101

Summary:

MW-C101 sensor is an electrochemical conductivity water quality detection sensor. By applying a constant voltage across the electrodes, the resistance of the solution changes, resulting in a change in the current of the measuring electrode. This change conforms to Ohm's law. The conductivity value is used to replace the resistivity value to measure the conductivity of the solution.

Feature:

* High sensitivity, low power consumption

* Excellent stability

* Temperature Compensated, Excellent Linear Output

* Provide serial port (UART), PWM waveform and other output methods

* Long lifespan

* Anti-water vapor interference, no poisoning.

INQUIRY

MANUAL

Share To:

APPLICATION

Water Quality

As we all know, there are a lot of pollutants in swimming pool water, and the polluted water can easily become a source of transmission of some diseases, causing various discomforts to swimmers. Therefore, the use of online water quality monitoring equipment for real-time monitoring and strict filtration and disinfection of pool water is an important link to prevent the spread of various diseases, protect swimmers and improve the quality of pool water.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

PARAMETER

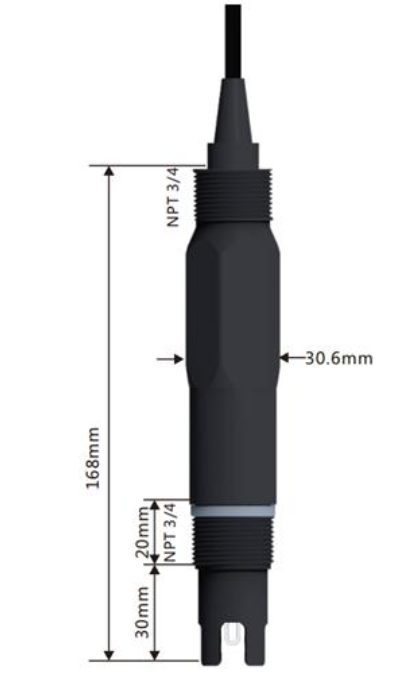

Specification Product Size

Technical Data Sheet

Model No.	MW-C101
Range	0～20000μS/cm
Temperature applicable range	0～80℃
Resolution	0.01μS/cm
Response time（T90）	≤ 30s
Accuracy	≤±3%
Protection class	Ip68
Working pressure	0~4bar
Working humidity	Relative humidity＜90%
Installation method	Submerged installation
Signal output	4~20mA/RS485
Calibration method	Two-point calibration

Free Guide! Learn the Parameter Differences of Similar Sensors

Wondering how to find the most suitable one for you out of so many sensors? Download our free guide to learn the comparison table of technical parameters.

DOWNLOAD GUIDE
