Infrared Photoelectric Sensor RGF-X2212

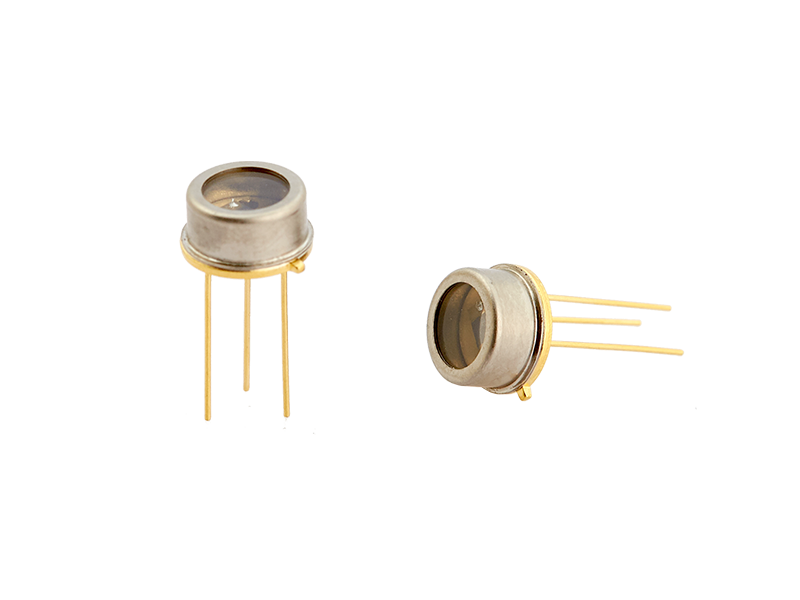

  • Infrared-Photoelectric-Sensor-RGF-X2212.png


The uncooled lead selenide (PbSe) sensor is a lead salt infrared photoelectric sensor, and its working principle is based on the photoconductive effect of semiconductor materials, thereby converting infrared radiation energy into electrical signals. PbSe sensor has strong absorption and response in the near and mid-infrared (1.0~5.0um) spectral bands; it is widely used in flame, high temperature and gas detection;


* TO-5 package; uncooled
* Fast response; high detection rate

Share To:


Infrared Alarm

The infrared alarm to prevent human intrusion is composed of pyroelectric infrared sensor and alarm controller. When someone enters the range to be protected, the sensor generates an electrical signal and transmits it to the controller, and the controller sends the alarm signal to the terminal through signal processing.


Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us


Specification Product Size

Technical Data Sheet

Performance Typical value Unit
Photosensitive area 2*2 mm
Response wavelength range 1-5 μm
Peak wavelength 3.8 μm
Response time 20 us
Peak responsivity 4*104 V/W
Peak Normalized Detection Rate 1*1010 cm·Hz½/W
Dark resistance 1-10
Operating temperature -30~60
