Liquid Level Sensor WPDK05


+
  • WPDK05.png

Summary:

WPDK05 series general-purpose liquid level transmitter is a new type of input liquid level measurement product, with high-quality imported diffused silicon as the core component, through the company's strict production process and quality management system, as well as sophisticated testing equipment, for the customer provided a new type of high stability submersible liquid level measuring instrument.

Feature:

* High sensitivity, low power consumption
* Excellent stability
* Temperature Compensated, Excellent Linear Output
* Provide serial port (UART), PWM waveform and other output methods
* Long lifespan
* Anti-water vapor interference, no poisoning.

Share To:


APPLICATION

Pipeline Pressure Monitoring

The combustion gas used in the city is supplied to urban residents from the gas source point through the gas distribution and supply system. The main component of the gas distribution system is the gas pipeline. Compared with other pipelines, the tightness of gas pipelines has particularly strict requirements,

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

PARAMETER

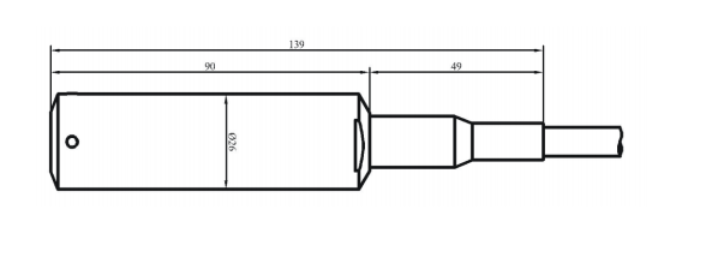

Specification Product Size

Technical Data Sheet

Model No. WPDK05
Range water depth 5M
Overall Accuracy ±0.5%FS@25°C
Output signal 4-20mA
Supply voltage 18-28VDC
Electrical connection Direct outlet Line length 5 meters
Compensation temperature -10-50°C
Ambient temperature -40-85°C
Safe overload 200%
Ultimate overload 250%
Long-term stability ≤±0.3%FS/Year
Zero temperature drift ≤±0.03%FS/°C
Sensitivity temperature drift ≤±0.03%FS/°C
Response time less than 10ms
Housing material 304 stainless steel
Environmental testing Can pass the routine ROHS test
Cable Polyurethane waterproof air guide cable
