MEMS H2 Sensor GMV-2021B


+
  • GM-102B.png

Summary:

GMV-2021B hydrogen gas sensor is a gas sensor based on an all-solid-state MOS principle based on an advanced MEMS architecture. Hydrogen in the environment will cause a change in the conductivity of the MOS in an exponential function of the hydrogen concentration.

Feature:

* Solid state
* Lightweight
* Low power consumption
* Long life
* Excellent anti-interference

Share To:


APPLICATION

Industrial Combustible Gas Alarm

In the process of industrial use of combustible gas, if the combustible gas is in an incomplete combustion state or has gas leakage, etc., the combustible gas will cause personnel poisoning or fire accidents, directly threatening the life safety of personnel. Therefore, it is necessary to install an industrial-grade gas alarm. If the gas exceeds the standard in the on-site environment, the alarm can give an early warning, thereby reducing the probability of danger.

MORE +

Other Detector

Formaldehyde detector is an instrument for detecting formaldehyde. Generally, semiconductor sensors and electrochemical sensors are used to realize the rapid semi-quantification of formaldehyde in indoor air on the spot, which is characterized by simple structure, small size, intuitive,easy to carry and use.

MORE +

Home Combustible Gas Alarm

The combustible gas alarm is an alarm device for detecting gas leakage. The component that reacts to the combustible gas is a gas sensor, and the response signal is converted into an electrical signal through the circuit board. When the combustible gas in the air reaches a certain concentration value, the alarm will alarm. The high-end household combustible gas alarm can automatically start the exhaust equipment and close the gas pipeline valve at the same time. A wireless transmission device can be installed inside the gas alarm to realize overall monitoring and network alarm to ensure the safety of everyone's life and property.

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

PARAMETER

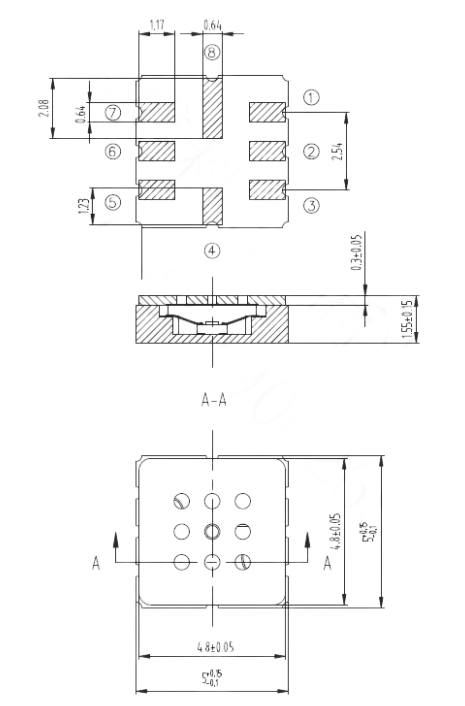

Specification Product Size

Technical Data Sheet

Part No. GMV-2021B
Sensor Type MEMS-MOS
Standard Encapsulation Ceramic
Detection Gas H2
Detection Range 0.1~1000ppm(H2)
Standard Circuit Conditions Loop Voltage VC ≤24V DC
Heater Voltage VH 2.5V±0.1V AC or DC
Load Resistance RL Adjustable
Sensor character under standard test conditions Heater Resistance RH 80Ω±20Ω(room temperature)
Heater consumption PH ≤50mW
sensitive materials resistance RS 1KΩ~30KΩ(in 200ppm H2 )
Sensitivity S R0(in air)/RS(in 200ppm H2)≥5
Concentration Slope α ≤0.6(R500ppm/R200ppm H2 )
