MEMS Temperature and Humidity Sensor Module ZS11
Summary:
ZS11 is a brand new product equipped with a dedicated ASIC sensor chip, a high-performance semiconductor silicon-based capacitive humidity sensor and a standard on-chip temperature sensor, and uses a standard I²C data output signal format. ZS11 products have stable performance under high temperature and high humidity environment; at the same time, the products have great advantages in accuracy, response time and measurement range. Each sensor has been strictly calibrated and tested before leaving the factory to ensure and meet the large-scale applications of customers.
Feature:
* Fully calibrated
* Wide supply voltage range from 2.2V to 5.5V
* Digital output, IIC interface
* Quick response and strong anti-interference ability
* Excellent long-term stability
Share To:
APPLICATION
Vehicle exhaust contains hundreds of different compounds, including suspended solids, carbon monoxide, carbon dioxide, hydrocarbons, nitrogen oxides, lead and sulfur oxides. Among them, hydrocarbons (HC) in automobile exhaust are the result of direct emission of unburned or insufficiently burned gasoline in the form of gas. Under the action of ultraviolet light,
Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry
PARAMETER
Technical Data Sheet
| Humidity characteristics | |||||
| Parameter | Condition | Minimum | Typical | Maximum | Unit |
| Resolution | typical | - | 0.024 | - | %RH |
| Precision error | typical | - | ±3.0 | Refer to Figure 1 | %RH |
| Repeatability | - | - | ±0.1 | - | %RH |
| Hysteresis | - | - | ±1 | - | %RH |
| Nonlinear | - | - | <0.1 | - | %RH |
| Response time | t63% | - | ＜8 | - | s |
| Work scope | - | 0 | - | 100 | %RH |
| Long time drift | normal | - | <1 | - | %RH/yr |
| Temperature characteristics | |||||
| Parameter | Condition | Minimum | Typical | Maximum | Unit |
| Resolution | typical | - | 0.01 | - | ℃ |
| Precision error | typical | - | ±0.5 | - | ℃ |
| maximum | Refer to Figure 2 | - | ℃ | ||
| Repeatability | - | - | ±0.1 | - | ℃ |
| Hysteresis | - | - | ±0.1 | - | ℃ |
| Response time | t63% | 5 | - | 30 | s |
| Work scope | - | -40 | - | 85 | ℃ |
| Long time drift | - | - | ＜0.04 | - | ℃/yr |
| Electrical Characteristics | |||||
| Parameter | Condition | Minimum | Typical | Maximum | Unit |
| Supply voltage | typical | 2.2 | 3.3 | 5.5 | V |
| Supply current, IDD5 | hibernate | - | 250 | - | nA |
| measurement | - | 980 | - | µA | |
| Power consumption | hibernate | - | - | 0.8 | µW |
| measurement | - | 3.2 | - | mW | |
| Communication | Standard IIC protocol | ||||

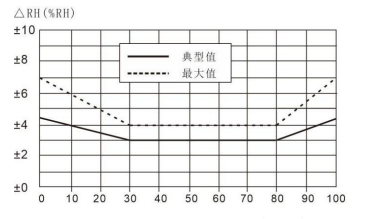

Figure 1. Typical and Maximum Errors for Relative Humidity at 25°C
Typical (——) Maximum (- - - -)

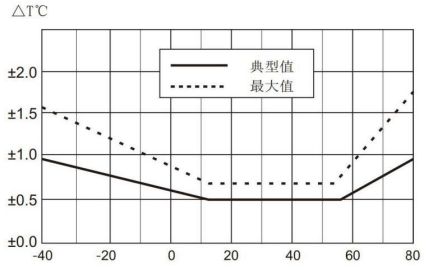

Figure 2. Temperature Typical Error and Maximum Error
Typical (——) Maximum (- - - -)
