MEMS Temperature and Humidity Sensor WHT20


+
  • WHT20.png

Summary:

WHT20 series temperature and humidity sensor, using transistor Vbe temperature characteristic high-precision temperature detection and dielectric constant change after the medium absorbs moisture. Realize environmental humidity detection, combined with the latest integrated circuit signal processing technology-based single-chip solutions.

Feature:

* High accuracy, ±3.0% RH and ±0.5 ℃
* Wide supply voltage range from 2.0 V to 5.5 V
* Available in SMD package, suitable for reflow soldering
* Quick response and strong anti-interference

Share To:


APPLICATION

Vehicle Air Quality

Vehicle exhaust contains hundreds of different compounds, including suspended solids, carbon monoxide, carbon dioxide, hydrocarbons, nitrogen oxides, lead and sulfur oxides. Among them, hydrocarbons (HC) in automobile exhaust are the result of direct emission of unburned or insufficiently burned gasoline in the form of gas. Under the action of ultraviolet light,

MORE +

Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

PARAMETER

Specification Product Size

Technical Data Sheet



Humidity characteristics
Parameter Condition Minimum Typical Maximum Unit
Resolution typical   0.01   %RH
Precision error typical   ±3.0   %RH
maximum Refer to Figure 1   %RH
Repeatability     ±0.1   %RH
Hysteresis     ±0.1   %RH
Nonlinear     <0.1   %RH
Response time t63%   <8   s
Work scope extended3 0   100 %RH
Long time drift normal   <0.5   %RH/yr
Temperature characteristics
Parameter Condition Minimum Typical Maximum Unit
Resolution typical   0.01
Precision error typical   ±0.5
maximum Refer to Figure 2
Repeatability     ±0.1
Hysteresis     ±0.1
Response time t63% 5   30 s
Work scope extended3 -40   85
Long time drift     <0.04   ℃/yr
Electrical Characteristics
Parameter Condition Minimum Typical Maximum Unit
Supply voltage typical 2.0 3.3 5.5 V
Supply current, IDD6 hibernate -   240 nA
measurement   340   µA
Power consumption hibernate -   0.8 µW
measurement   0.07   mW
average - 3.3 - µW
Communication Two-wire digital interface, standard I2C protocol
Note Power consumption is related to temperature and supply voltage VDD. Refer to the manual for details.

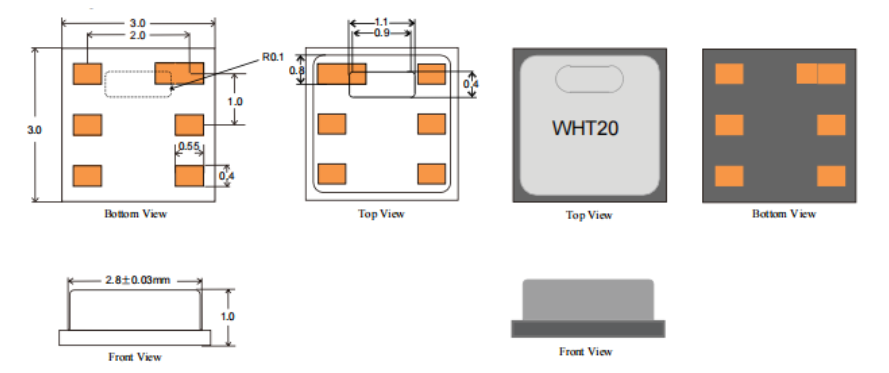

Packaging Information
Sensor model Package Quantity
WHT 20 Tape and Reel 5000PCS/roll(MAX)

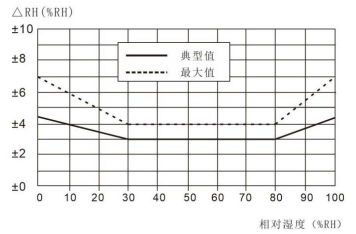

Figure 1 Maximum error in relative humidity at 25°C

               Typical (——) Maximum (- - - -)

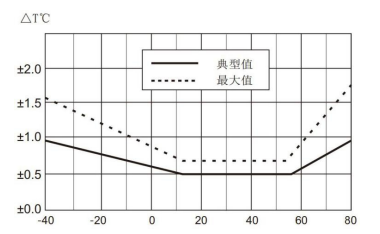

Figure 2 Temperature Typical Error and Maximum Error

               Typical (——) Maximum (- - - -)
