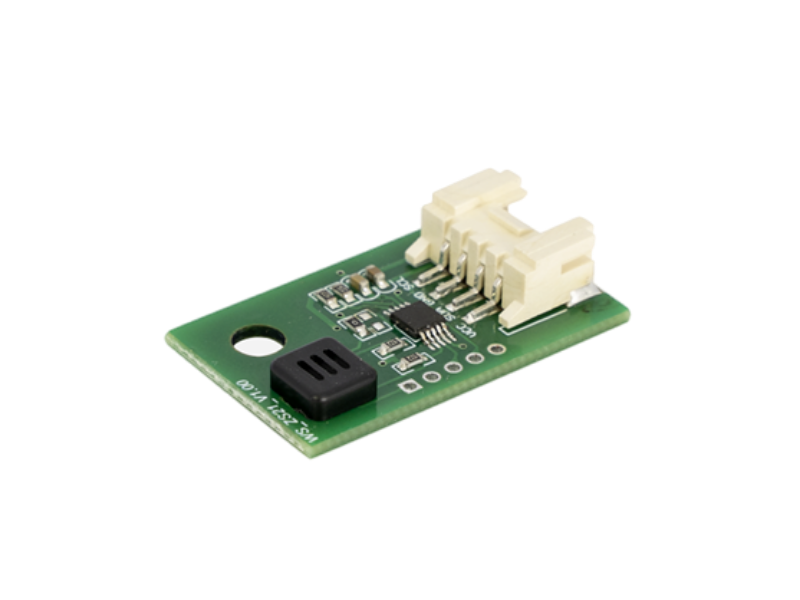

Macromolecule Humidity Sensor MS-Z2

  • MS-Z2.png


MS-Z2 humidity sensor is made of high polymer humidity sensitive material. In wet
conditions, water molecules are adsorbed by polar group on the surface of martial. And as
the humidity increases, the quantity of water molecules will be changed accordingly. The
adsorbed water is gradually condensing and coming into be liquid, which is electrolyte
solution with current channel quality.
With the humidity increasing, macromolecule will swell, interior free volume will be bigger,
carrier will be increased and the activated energy of macromolecule polyelectrolyte
counter-ions will decrease, drift mobility will increase and impedance will decrease. And
then when humidity decreases, water molecules are released from ion polymer and the
resistor of material will increase. The environment humidity can be monitored through
testing the impedance.

Humidity sensor, as an important chemical sensor, which is widely used in fields of
warehousing, industry production, and process control, environmental monitoring, home
appliances and meteorology etc.


* Wide humidity detected rang
* Fast response
* Small Humidity hysteresis error
* Simple manufacture
* Easy integration

Share To:


Food Storage and Transportation

The intelligent control and precise management of grain bin are the key to realizing safe and efficient grain storage. Using the grain bin sensor to build a smart grain system can save food while reducing the input of manpower and material resources.


Underground Pipe Network

Urban underground pipe gallery is a municipal public facility that implements unified planning, design, construction and maintenance, and is built in the city underground for laying municipal public pipelines.During the construction of the urban underground comprehensive pipe gallery, the workers are actually working in a closed environment or a closed space.


Kitchen Appliance

Winsen is a well -known gas sensor production supplier in the world, providing mature gas, natural gas, liquefied gas detection scheme, offering abundant models suitable for all gas alarms on the market, and flexible modules meeting the integration requirements of almost all kitchen electrical suppliers.


Air Quality Monitoring in Public Places

Outdoor air quality monitoring is a process of measuring the concentration of pollutants in the atmospheric environment, observing and analyzing their changes and their impact on the environment. Air pollution monitoring is to measure the types and concentrations of pollutants in the atmosphere, and observe their spatial distribution and changing rules.


Air Quality Monitor

Air pollution is becoming more and more serious. The value of PM2.5 (referring to particulate matter with aerodynamic equivalent diameter less than or equal to 2.5 microns in ambient air) is a parameter index.


Didn't Find Your Tarket Application?
Winsen offers tailor-made gas sensor solutions for your industry

Contact us

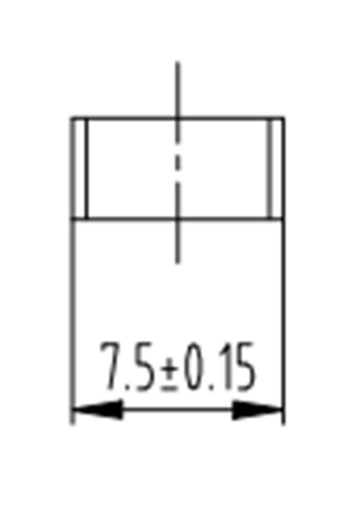

Specification Product Size

Technical Data Sheet




Working range



Storage range



Detection range


Rated voltage

1.5V AC(MAX,sine wave)

Rated power

0.2mW(MAX,sine wave )

Working frequency


Nominal value &range

31 (20~50) KΩ(60%RH, 25°C)





Response time

Moisture absorption:≤30s
